显示

掌控板2.0 板载1.47英寸lcd显示屏，分辨率320x172。内置 LVGL 的 lv_micropython 库，因此可以使用lvgl的相关API来进行屏幕绘制。

备注

LVGL(轻量级和通用图形库) 是一个免费和开源的图形库，它提供了创建嵌入式GUI所需的一切，具有易于使用的图形元素，美丽的视觉效果和低内存占用。

  • 内置字体:

    • font_siyuan_heiti_medium_24：思源黑体24号，支持中文（内置20000基本常用汉字）

    • font_montserrat_16：支持数字、拉丁字母及常用英文符号

    • font_montserrat_20：支持数字、拉丁字母及常用英文符号

    • font_montserrat_24：支持数字、拉丁字母及常用英文符号

备注

Montserrat：是一款支持正体和斜体两种风格的无衬线字体

提示

软件中使用的 GUI 库为根据 lvgl 自主封装的库。以下所讲解的都是通过GUI库来绘制屏幕，若想使用原生 lv_micropython 进行编程可自行前往 LVGL官网 或 lv_micropython github仓库 进行学习。

文本显示

使用前，须导入mpython模块:

from lv_gui import *

Hello, world! 文本显示

# 初始化 GUI 库
gui = GUI()
# 在屏幕坐标(10, 10)处绘制文本内容“Hello, world!”
gui.draw_label(text='Hello, world!', x=10, y=10, width=290, color=0xffffff, wrap=False)
# 使绘制的内容更新到屏幕上
gui.update()

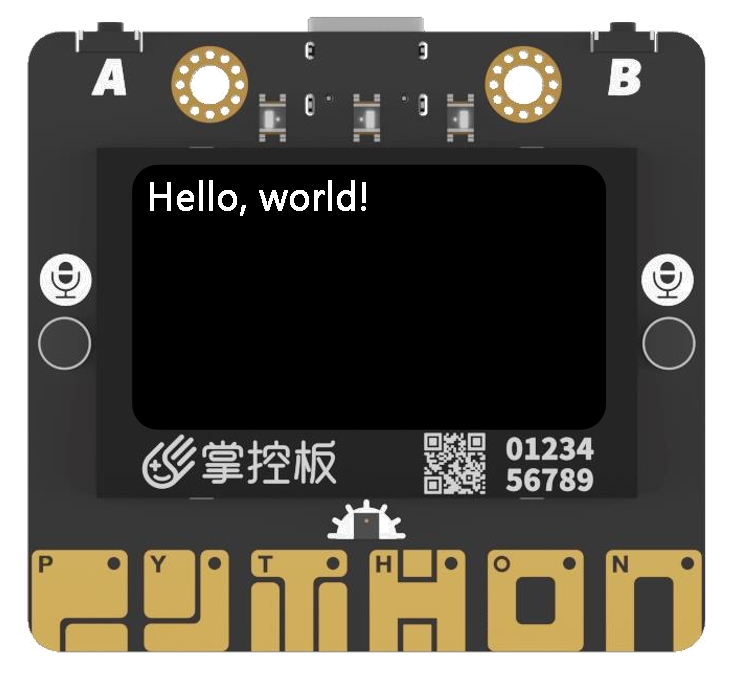

../../../../../_images/draw_label1.png

显示效果

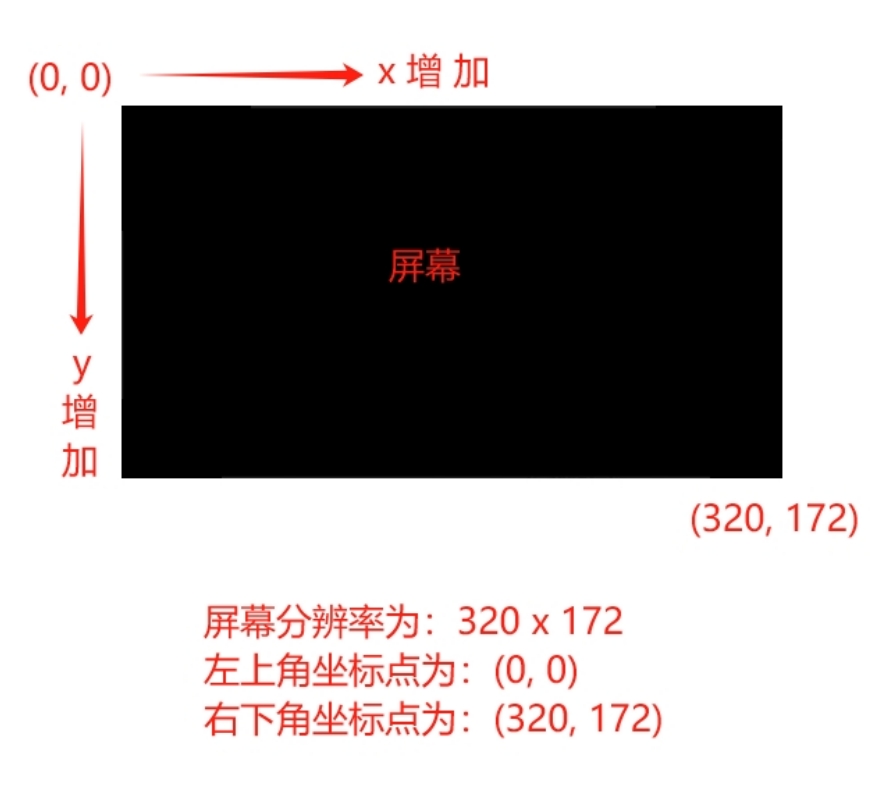

屏幕的坐标点

掌控板屏幕分辨率为 320 x 172，左上角坐标为 (0, 0)，右下角坐标为 (320, 172)。横向向右x坐标增大，纵坐标向下y坐标增大。

../../../../../_images/lcd_size1.png

设置颜色

gui = GUI()
# 设置屏幕背景颜色为白色
gui.set_bg_color(0xffffff)
# 在第一行显示红色的字
gui.draw_label(text=str('红色的字'), row=1, color=0xff0000, wrap=False)
# 在第二行显示绿色的字
gui.draw_label(text=str('绿色的字'), row=2, color=0x00ff00, wrap=False)
# 在第三行显示蓝色的字
gui.draw_label(text=str('蓝色的字'), row=3, color=0x0000ff, wrap=False)
# 在第四行显示黄色的字
gui.draw_label(text=str('黄色的字'), row=4, color=0xffff00, wrap=False)
# 在第五行显示黑色的字
gui.draw_label(text=str('黑色的字'), row=5, color=0x000000, wrap=False)
# 显示生效
gui.update()

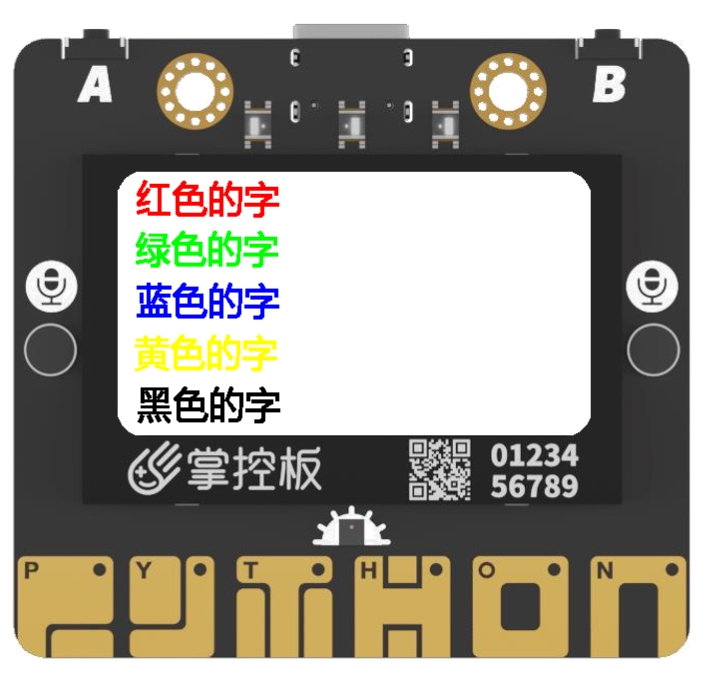

../../../../../_images/lcd_color1.png

效果图

备注

参数 color 颜色的色值为16进制数值，即 0x000000 ~ 0xFFFFFF，也可以写成 0 ~ 16777215 。

基本形状绘制

【1】绘制点

gui = GUI()
# 在坐标点(10, 10)绘制黄色的点
gui.draw_point(10, 10, 0xffff00, 1)
gui.update()

备注

gui.draw_point(x, y, color, state)
x、 y 为点坐标(x, y)
color 为颜色
state 为状态，1表示亮，0表示

【2】绘制线

gui = GUI()
# 绘制一条从坐标(10, 10)到(100, 100)粗细程度为2的黄色线段
gui.draw_line(10, 10, 100, 100, size=2, color=0xffffff, draw=True)
gui.update()

备注

gui.draw_line(x1, y1, x2, y2, size, color, draw)
x1、 y1 为起点坐标(x1, y1)
x2、 y2 为终点坐标(x2, y2)
size 为粗细程度
color 为颜色
draw 为绘制或擦除，1为绘制，0为擦除

【3】绘制矩形

gui = GUI()
# 在坐标(10, 10)绘制一个宽200 高100 边框粗细为2 边框颜色为红色 填充颜色为白色的矩形 圆角为10
gui.draw_rect(10, 10, 200, 100, 2, 0xff0000, 0xffffff, 10, 1, 1)
gui.update()

备注

gui.draw_line(x, y, width, height, border_width, border_color, bg_color, radius, fill, draw)
x、 y 为左上角坐标(x, y)
width 为宽度
height 为高度
border_width 为边框粗细
border_color 为边框颜色
bg_color 为填充颜色
radius 为圆角
fill 为是否填充，1为填充，0为不填充
draw 为绘制或擦除，1为绘制，0为擦除

【4】绘制圆

gui = GUI()
# 在坐标(60, 60)绘制一个半径为50 边框粗细为2 边框颜色为红色 填充颜色为白色的圆 （该坐标为圆心坐标）
gui.draw_round(60, 60, 50, 2, 0xff0000, 0xffffff, 1, draw=True)
gui.update()

备注

gui.draw_round(x, y, radius, border_width, border_color, bg_color, fill, draw)
x、 y 为圆心坐标(x, y)
radius 为半径
border_width 为边框粗细
border_color 为边框颜色
bg_color 为填充颜色
fill 为是否填充，1为填充，0为不填充
draw 为绘制或擦除，1为绘制，0为擦除

【5】绘制五角星

gui = GUI()
# 在坐标(60, 60)绘制一个半径为50 填充颜色为黄色的五角星（该坐标为中心坐标）
gui.draw_star(60, 60, 50, color=0xffff00, fill=1, draw=True)
gui.update()

备注

gui.draw_star(x, y, radius, color, fill, draw)
x、 y 为中心坐标(x, y)
radius 为半径
color 为颜色
fill 为是否填充，1为填充，0为不填充
draw 为绘制或擦除，1为绘制，0为擦除

此外，还有绘制三角形、绘制进度条、绘制柱状条等。

显示图片

【1】显示16进制数据图像

首先我们需要将图像处理为大小320*172，颜色深度为1或者就是黑白模式的bmp格式。您可以使用Photoshop或者其他的图像处理软件。

接下来是使用取模工具对图片进行取模。网上有PCtoLCD、lcd image converter等取模软件，可根据自己喜好自行选择。

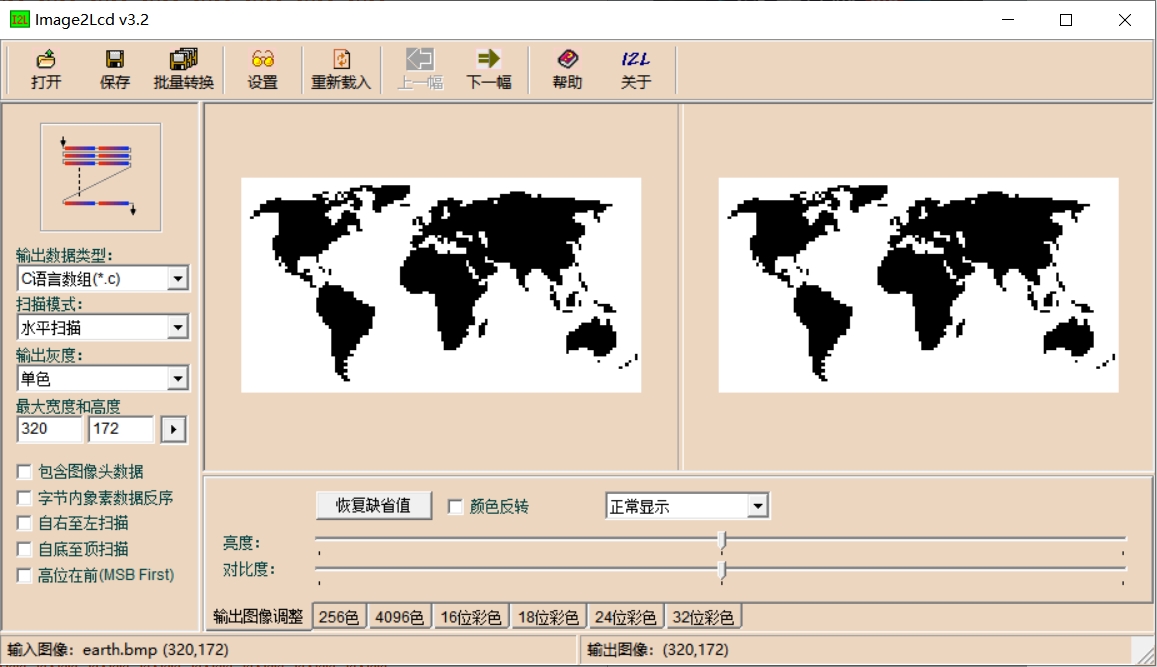

  • 步骤1.导入320x172，bmp格式图片

  • 步骤2.选择参数，输出数据类型[C语言数组]、 扫描模式[水平扫描]、输出灰度[单色]、宽高[320*172]

  • 步骤3.点击保存，自动生成取模数据。

../../../../../_images/lcd_image2lcd1.png

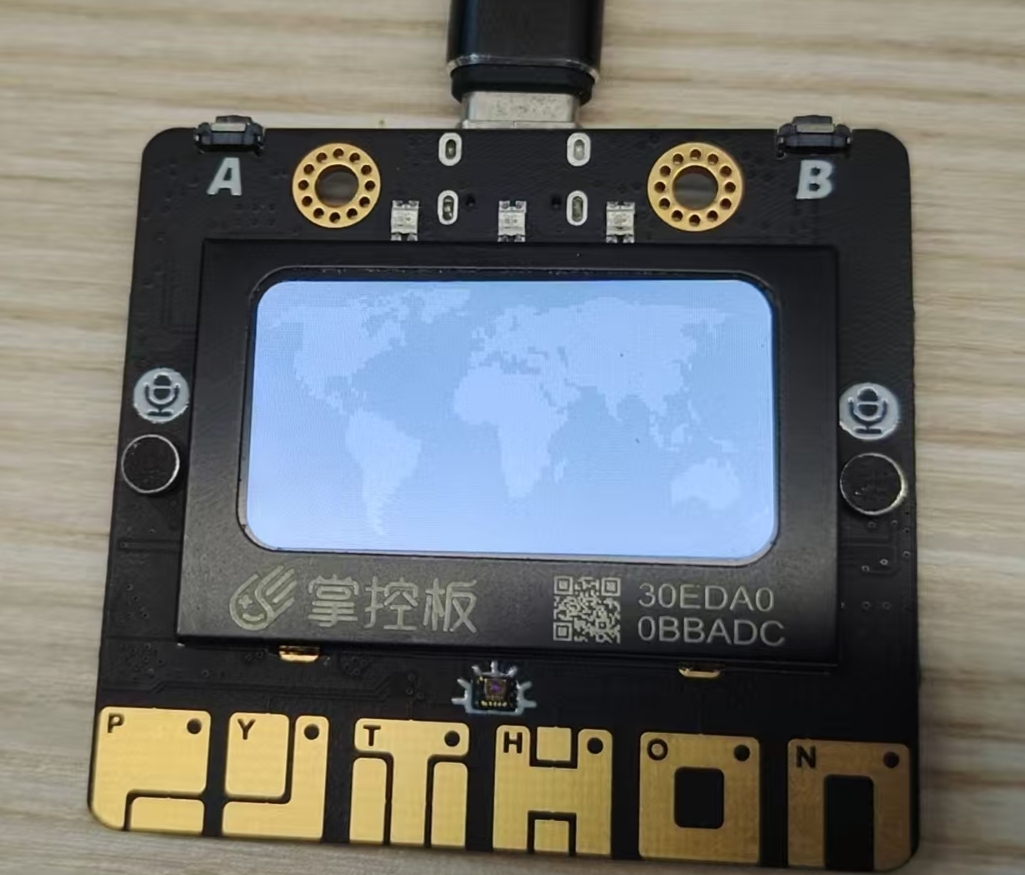

将取模数据赋值给bmp数组中，然后显示在LCD显示屏上。

from lv_gui import *

bmp_data = [
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X80,0XFF,0XFF,
        0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X01,0XFF,0X80,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X8F,0XFF,0XFF,0XFF,
        0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X01,0XFF,0X8F,0XFF,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X8F,0XFF,0XFF,0XFF,
        0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X7C,0X07,0X3F,0XC0,0X00,0X7F,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X01,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7C,0X07,0X3F,0XC0,0X00,0X7F,0XFF,0XFF,
        0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XE0,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,
        0X80,0X18,0XC7,0XF0,0X00,0X1F,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X01,0XFF,0XFF,0XFF,0X07,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0X80,0X18,0XC7,0XF0,0X00,0X1F,0XFF,0XFF,
        0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0X07,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,
        0X80,0X18,0XC7,0XF0,0X00,0X1F,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X01,0XFF,0XFF,0XFF,0X07,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0X00,0X00,0X00,0X0F,0XFC,0X18,0X3F,0XFE,0X00,0X1F,0XFF,0XFF,
        0XC0,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0X00,0X00,0X00,0X0F,
        0XFC,0X18,0X3F,0XFE,0X00,0X1F,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,
        0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XF8,0X3F,0X80,0X7F,0XFF,0XC0,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0X80,0X7F,0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XE3,0XFF,0XF8,0X3F,0X80,0X7F,0XFF,0XC0,0X00,0X00,0X00,0X07,0XFF,0XFF,0X80,0X7F,
        0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XF8,0X3F,0X80,0X7F,0XFF,0XC0,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0X80,0X7F,0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0X01,0XFF,0X80,0X7F,0XF8,0X01,0XFE,0X00,0X00,0X07,0XFF,0XFE,0X0F,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X01,0XFF,0X80,0X7F,0XF8,0X01,
        0XFE,0X00,0X00,0X07,0XFF,0XFE,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X00,0X00,0X3E,0X00,0X7F,0X00,0X00,0X00,0X00,0X00,0XFF,0XC7,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,
        0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X3E,0X00,0X7F,0X00,0X00,
        0X00,0X00,0X00,0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X00,0X00,0X3E,0X00,0X7F,0X00,0X00,0X00,0X00,0X00,0XFF,0XC7,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,
        0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X3E,0X00,0X00,0X1F,0X00,0X00,
        0X00,0X00,0X03,0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XF8,0X3F,0XC0,0X00,0X00,0X00,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0X3E,0X00,0X00,0X1F,0X00,0X00,0X00,0X00,0X03,0XFF,0XC7,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X3F,0XC0,0X00,0X00,0X00,
        0X00,0X3E,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0XFF,0XC1,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X38,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XE0,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XC1,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X38,0X00,0X00,0X00,0X00,
        0X00,0X3E,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0XFF,0XC1,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X38,0X00,0X00,0X00,0X00,0X01,0XC0,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X0F,0X80,0XFF,0X07,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X3E,0X00,0X00,0X00,0X00,
        0X01,0XC0,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X0F,0X80,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X80,0X00,0X3E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X07,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X73,0X80,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X06,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0X07,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X73,0X80,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X06,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X07,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X73,0X80,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X06,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0X1F,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X73,0XE3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X1F,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X73,0XE3,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X0E,0X00,0X00,0X00,0X00,
        0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XF8,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X0E,0X00,0X00,0X00,0X00,
        0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XF8,0X0F,0X80,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X0F,0X80,0X00,0X00,0X00,
        0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XF0,0X7F,0XFC,
        0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X7F,0XFF,0XFF,0XF0,0X7F,0XFC,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XF0,0X7F,0XFC,
        0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X7F,0XFC,0X18,0XFF,0XF0,0X00,0X7C,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFC,0X18,0XFF,0XF0,0X00,0X7C,
        0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X7F,0XE0,0X07,0XC7,0XFF,0XFC,0X7F,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XE0,0X07,0XC7,0XFF,0XFC,0X7F,
        0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X7F,0XE0,0X07,0XC7,0XFF,0XFC,0X7F,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X80,0X00,0XC6,0X0F,0XFF,0XFF,
        0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF0,0X1C,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X01,0XFF,0X80,0X00,0XC6,0X0F,0XFF,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XF0,0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7C,0X03,0XE0,0X00,0X0F,0XFF,0XFF,
        0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X7C,0X03,0XE0,0X00,0X0F,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7C,0X03,0XE0,0X00,0X0F,0XFF,0XFF,
        0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X0F,0XFF,0XE0,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XE0,0X00,0X00,0X0F,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X01,0XFF,0XFF,0XF8,0X06,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,
        0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XF8,0X06,0X00,0X0F,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X01,0XFF,0XFF,0XF8,0X06,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFC,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0XFF,0XFE,0X00,0X0C,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1C,0XFF,0XFE,0X00,0X0C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0XFF,0XFE,0X00,0X0C,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0XFF,0XF8,0X00,0X0C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XFF,0XE0,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XF8,0X00,0X0C,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XFF,
        0XE0,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XFF,0XFF,0XC0,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X9C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X1F,0XF8,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XFF,
        0XFF,0XC0,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9C,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X03,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XFF,0XFF,0XC0,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFF,0X9C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0XF8,0X00,0X03,
        0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X7F,
        0XFF,0XF8,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X07,0XF8,0X00,0X03,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X7F,0XFF,0XF8,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X3E,0X00,
        0X63,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X1F,
        0XFF,0XF8,0X00,0X0F,0XFF,0X00,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X1F,0XF8,0X3E,0X00,0X63,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X1F,0XFF,0XF8,0X00,0X0F,0XFF,0X00,0XFF,0XFE,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X3E,0X00,
        0X63,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X1F,
        0XFF,0XF8,0X00,0X0F,0XFF,0X00,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0XFF,0XF0,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XC0,0X00,0X0F,0XFC,0X00,0X3F,0XFE,
        0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XF0,0X00,
        0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,
        0XFF,0XC0,0X00,0X0F,0XFC,0X00,0X3F,0XFE,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0XF8,0X00,0X00,0X0F,0XE0,0X00,0X07,0XFF,
        0X80,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,
        0XF8,0X00,0X00,0X0F,0XE0,0X00,0X07,0XFF,0X80,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0XF8,0X00,0X00,0X0F,0XE0,0X00,0X07,0XFF,
        0X80,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0X00,0X00,0X00,0X03,0XE0,0X00,0X01,0XFF,0X80,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X03,0XE0,0X00,0X01,0XFF,
        0X80,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X80,
        0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,
        0X18,0X00,0X00,0X03,0XE0,0X00,0X00,0X0F,0X80,0X00,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X80,0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X01,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X18,0X00,0X00,0X03,0XE0,0X00,0X00,0X0F,
        0X80,0X00,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X80,
        0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,
        0X18,0X00,0X00,0X03,0XE0,0X00,0X00,0X0F,0X80,0X00,0XE0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,0X7F,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,
        0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X00,0X00,0X00,0X60,0X00,0X01,0XC0,
        0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,
        0X7F,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XF8,0X00,0X00,0X00,0X60,0X00,0X01,0XC0,0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X00,0X00,0X00,0X1C,0X00,0X01,0XC0,
        0X00,0X00,0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
        0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XF8,0X00,0X00,0X00,0X1C,0X00,0X01,0XC0,0X00,0X00,0X18,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X00,0X00,0X00,0X1C,0X00,0X01,0XC0,
        0X00,0X00,0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
        0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X01,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,
        0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X00,0X7C,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,
        0X01,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X30,
        0X00,0X7C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
        0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,
        0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,
        0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
        0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,
        0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,
        0X0F,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFC,
        0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XF0,0X0F,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,
        0X0F,0XE3,0X00,0X38,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XE0,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X0F,0XE3,0X00,0X38,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,
        0X0F,0XE3,0X00,0X38,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XE0,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X0F,0XE3,0X00,0X07,0XFE,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,
        0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,
        0X0F,0XE3,0X00,0X07,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,0X00,0X3F,0X80,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0E,
        0X00,0X00,0X00,0X00,0X3F,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,0X00,0X3F,0X80,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X7F,0X80,0X00,0X00,0X3F,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0X80,0X00,0X00,0X3F,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
        0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X38,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X38,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,
        0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFE,0X0E,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0XFE,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,
        0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFE,0X0E,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0XFF,0XFE,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X1F,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFF,0XE0,
        0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFE,0X0E,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFC,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X03,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X03,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XFC,0X03,
        0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XFC,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X03,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0XFF,0XFF,0XF0,0X03,
        0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,
        0X00,0X00,0X00,0X07,0XFF,0XFF,0XF0,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFC,0X03,
        0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0XFF,0XFF,0XFC,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X03,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFC,0X03,
        0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0XFF,0XFF,0XF0,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XF0,0X03,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0X80,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFF,0X80,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X3F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFE,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X3F,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XFE,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X3F,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0F,0XFC,0X07,0XFF,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XF0,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFC,0X07,0XFF,0XFF,0X80,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0C,0X00,0X00,0X3F,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0C,0X00,0X00,0X3F,0XFE,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X0C,0X00,0X00,0X3F,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3F,0XF0,0X00,0X00,0X18,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X3F,0XF0,0X00,0X00,0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X18,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X18,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X18,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XC0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X06,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X06,0X00,0X00,0X03,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XC0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X1F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X07,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X3E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
        0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
]

gui = GUI()
# 在坐标(0, 0)上绘制宽为320，高为172的16进制数据图像
gui.draw_bitmap(0, 0, 320, 172, bmp_data)
gui.update()

备注

gui.draw_bitmap(x, y, width, height, bitmap_data)
x、 y 为左上角坐标(x, y)
width 为图片宽度
height 为图片高度
bitmap_data 为图片数据，类型为需要是16进制的列表（List）类型
../../../../../_images/lcd_bmp1.png

效果图

【2】显示png图片

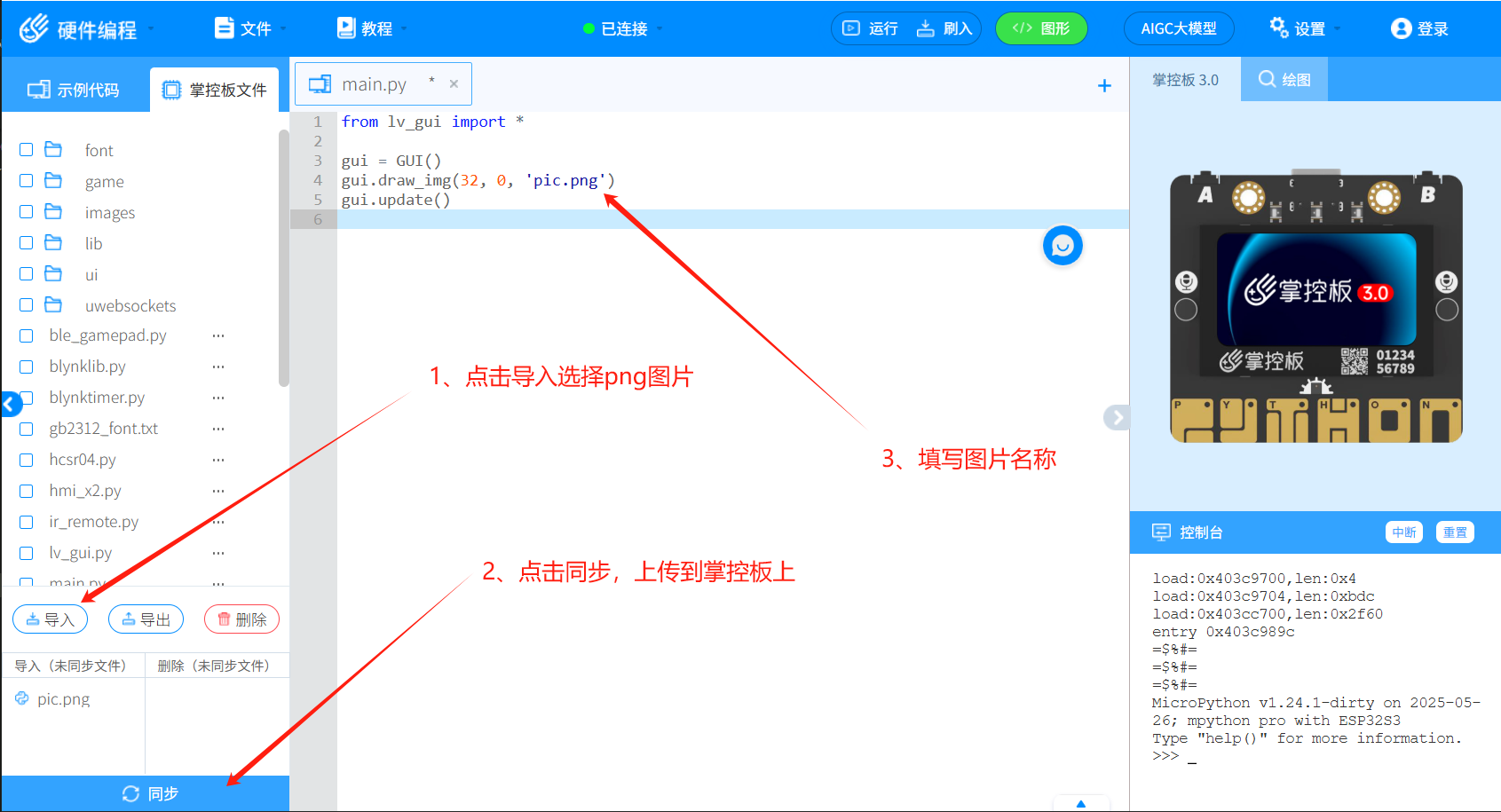

准备一张png格式的图片。图片尺寸不建议过大，保持小于或等于屏幕效果最佳。 然后上传到掌控板上，如下图：

../../../../../_images/lcd_upload_img1.png

操作流程图

from lv_gui import *

gui = GUI()
# 在坐标(0, 0)绘制一张图片，图片路劲为'pic.png'，因为是上传到根目录下，所以直接写图片名称即可
gui.draw_img(0, 0, 'pic.png')
gui.update()

备注

gui.draw_img(x, y, path)
x、 y 为左上角坐标(x, y)
path 为图片路径

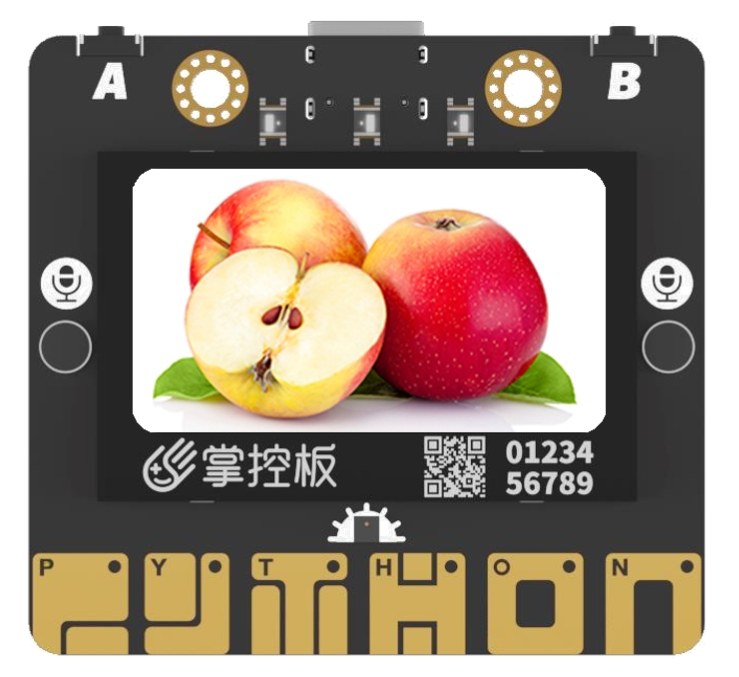

../../../../../_images/lcd_img1.png

效果图
