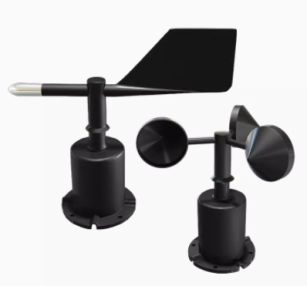

风速风向传感器

概述

气象站专用传感器，测量风速和风向，485信号通讯。

技术参数

工作电压：12V

波特率：4800bps

风速测量范围：0-35m/s（0-12级）

风向测量范围：八方位

动态响应时间：≤2秒

配件：12V-DC电源适配器、转接线等

引脚 定义

引脚	定义
GND	地
VCC	电源
TX	串口发送
RX	串口接收

示例程序

气象站代码

from mpython import *

from bluebit import WEATHER

w = WEATHER(uart_num=1,pin_tx=Pin.P16,pin_rx=Pin.P15)

import time

def get_wind_dir():
    try:
        direction = w.read_wind_direction()[0]
        if(direction == 0):
            return "北风"
        elif(direction == 1):
            return "东北风"
        elif(direction == 2):
            return "东风"
        elif(direction == 3):
            return "东南风"
        elif(direction == 4):
            return "南风"
        elif(direction == 5):
            return "西南风"
        elif(direction == 6):
            return "西风"
        elif(direction == 7):
            return "西北风"
    except:
        pass

def get_wind_power(arg):
    try:
        wind_power = w.read_wind_power()
        if(arg==0):
            return wind_power[0]
        else:
            return wind_power[1]
    except:
        pass

def get_rainfall():
    try:
        rainfall = w.read_rainfall()
        return rainfall
    except:
        pass
while True:
    print('风向：' + str(get_wind_dir()))
    time.sleep(0.5)
    print('风速：' + str(get_wind_power(0)))
    time.sleep(0.5)
    print('降雨量：' + str(get_rainfall()))
    print('===')
    time.sleep(1)
